180 Class Enameled Copper Wire

Short Description:

Enameled Copper Wire is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire. 180 Class Enameled Copper Wire is suitable for use in crafts or for electrical grounding. The product can work continuously under 180°C. It has good thermal shock resistance and cut-through testing and resistance to solvent and refrigerant. It is suitable for winding in anti-detonating motors, lifting motor and high-quality household appliances, etc.

Product Detail

Product Tags

Product Types

QZY/180, EIW/180

Temperature Class(℃): H

Manufacturing Scope: 0.10mm-6.00mm, AWG 1-38, SWG 6~SWG 42

Standard: NEMA, JIS, GB/T 6109.7-2008, IEC60317-34:1997

Spool Type: PT4 - PT60, DIN250

Package of Enameled Copper Wire: Pallet Packing, Wooden case Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Advantages of Enameled Copper Wire

1) High resistance to heat shock.

2) High temperature.

3) Good performance in cut-through.

4) Suitable for high-speed automated routing.

5) Able to be direct welding.

6) Resistant to high frequency, wearing, refrigerants and electronics corona.

7) High breakdown voltage, small dielectric loss angle.


Product Details

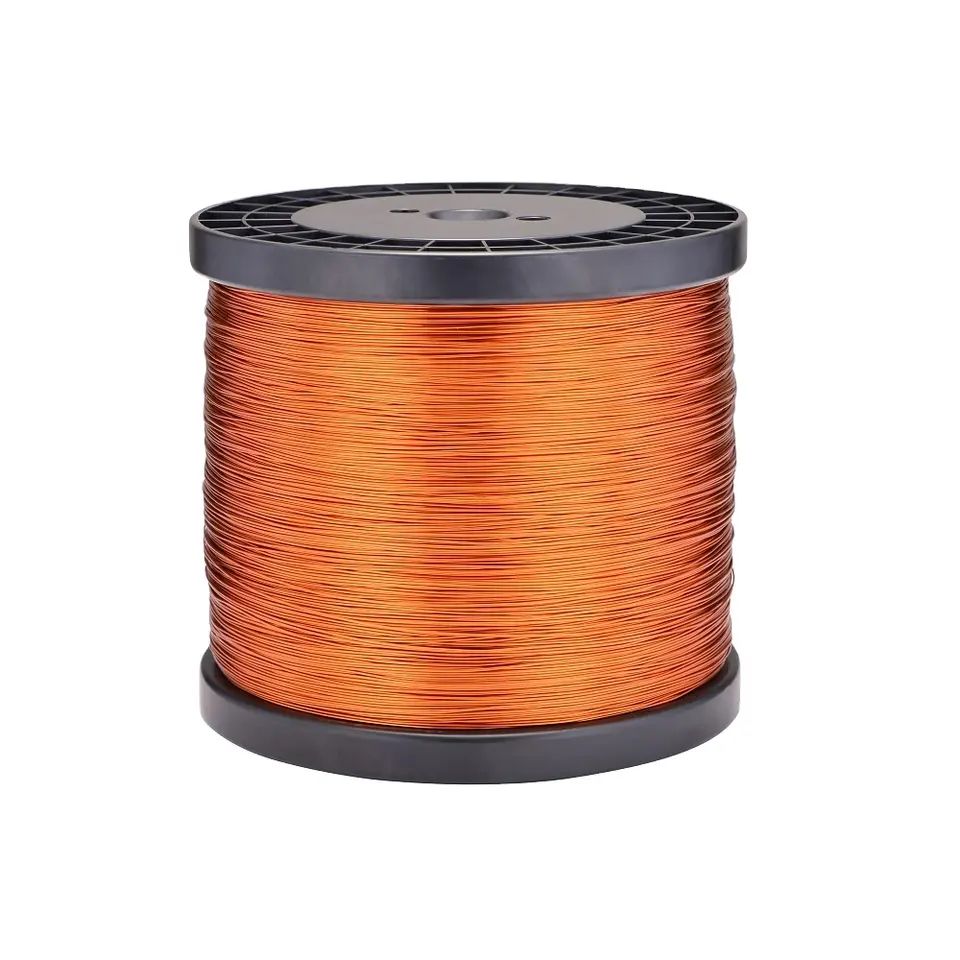

180 Class Enameled Copper Wire1

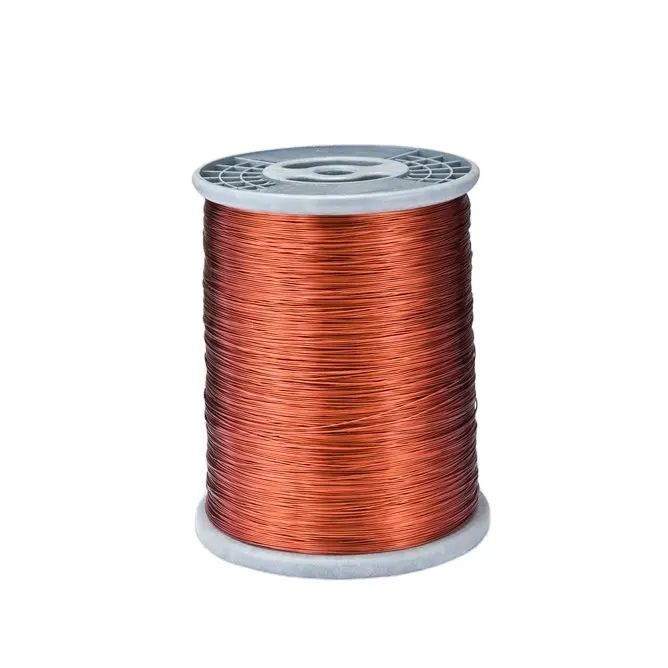

180 Class Enameled Copper Wire3

Application of 180 Class Enameled Copper Wire

(1) enamelled wire for motor and transformer

The motor is a large user of enamelled wire. Transformer industry is also a large user of enamelled wire. The product is suitable for winding in anti-detonating motors, lifting motors.

(2) enamelled wire for household appliances

Home appliances with enamelled wire is a very huge market, such as TV deflection coil, automobile, electric toys, speaker equipment with power transformers and so on. The consumption of enamelled wire in household appliance industry has exceeded that of industrial motor and transformer enamelled wire. The product is suitable for high-quality household appliances, etc.

(3) enamelled wire for automobiles

The rapid development of automobile industry after reform and opening has become one of the pillar industries. In the next 20 years, the world's three major automobile markets are the United States, Europe and China.

(4) New enamelled wire

The micro enamelled wire and ultra fine enamelled wire are mainly used in the output transformer of TV and display, washing machine timer, buzzer, radio recorder, VCD, computer magnetic head, micro relay, electronic watch and other components. Micro enamelled wire mainly to electroacoustic equipment, laser head, special motor and so on.

Spool & Container Weight


Spool type


Maximum load quantity


40GP/ 40NOR




22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons
