130 Class Enameled Copper Wire

Short Description:

Enamelled copper wire is one of the main types of winding wire. It is composed of conductor and insulating layer. The bare wire is softened by annealing, painting for many times, and baking. With mechanical properties, chemical properties, electrical properties, thermal properties of four major properties.

It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire. 130 Class Enameled Copper Wire is suitable for use in crafts or for electrical grounding. The product can work continuously under 130°C . It has excellent and electrical properties and is suitable for winding in general motors of class B and coils of electrical instrument.

Product Detail

Product Tags

Product Types

QZ/130L, PEW/130

Temperature Class(℃): B

Manufacturing Scope: 0.10mm-6.00mm, AWG 1-38, SWG 6~SWG 42

Standard: NEMA, JIS, GB/T 6109.7-2008, IEC60317-34:1997

Spool Type: PT4 - PT60, DIN250

Package of Enameled Copper Wire: Pallet Packing, Wooden case Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Advantages of Enameled Copper Wire

1) High resistance to heat shock.

2) High temperature resistance.

3) Fit for high-speed automated routing.

4) Can be direct welding.

5) Resistant to high frequency, wearing, refrigerants and electronics corona.

6) High breakdown voltage, small dielectric loss angle.

7) Environment-friendly.

Product Details

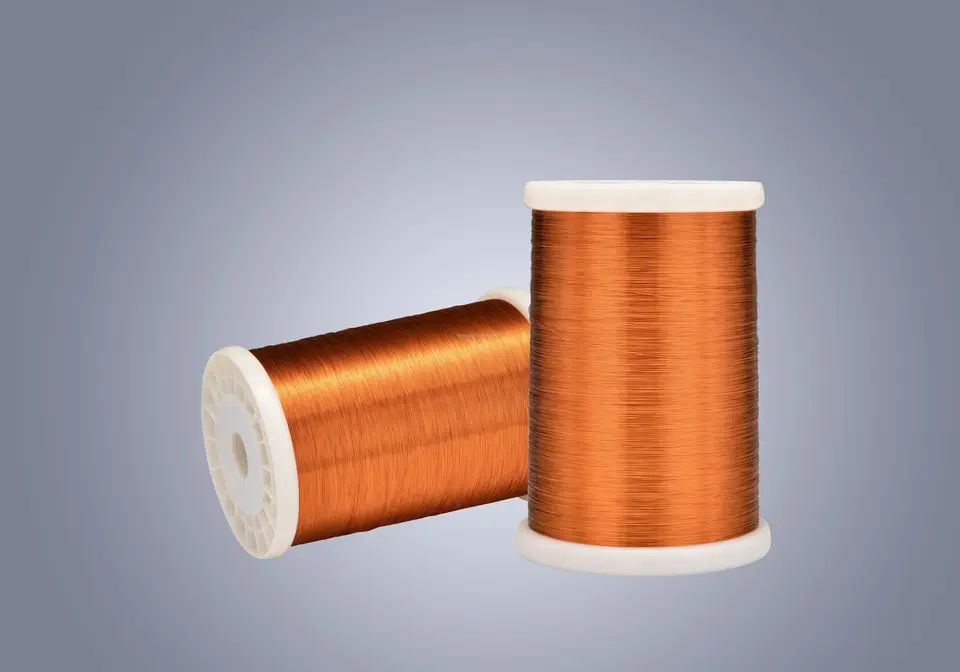

130 Class Enameled Copper Wire2

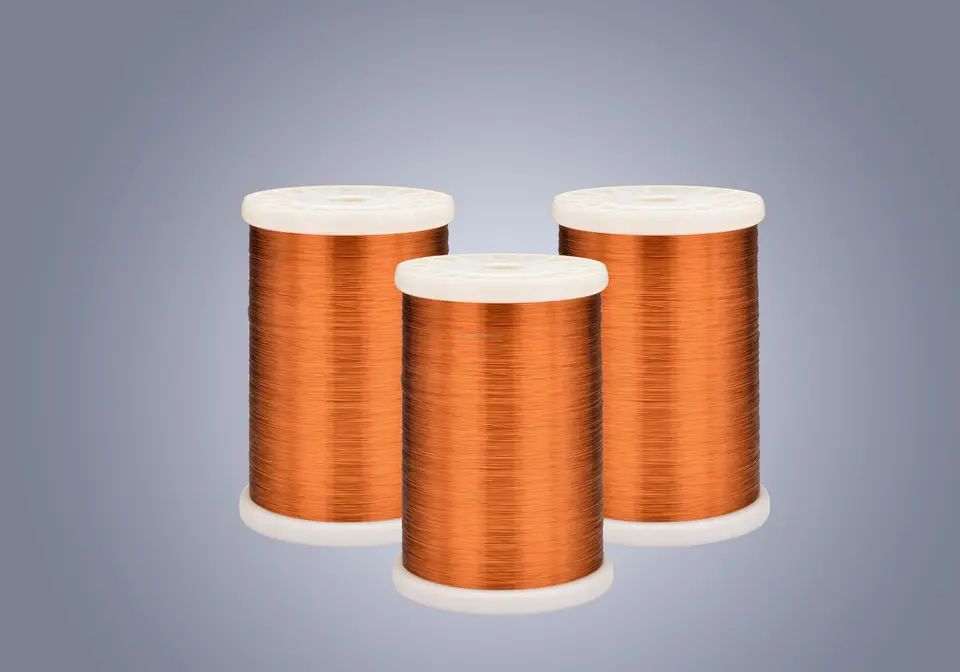

130 Class Enameled Copper Wire6

Application of 130 Class Enameled Copper Wire

(1) enamelled wire for motor and transformer

Transformer and motor industry are large users of enamelled wire. With the development of the national economy, the increase of electricity consumption, transformer and motor demand also increase.

(2) enamelled wire for household appliances

TV deflection coil, automobile, electric toys, electric tools, range hood, induction cooker, microwave oven, speaker equipment with power transformers and so on.

(3) enamelled wire for automobiles

The development of the automobile industry will increase the consumption of heat-resistant special performance enamelled wire.

(4) New enamelled wire

After the 1980s, the development of new heat-resistant enamelled wire has been turned to the study of linear structure and coating, in order to improve the performance of wire, give new functions and improve the machining performance, and develop some special cables and new enamelled wire.

Spool & Container Weight


Spool type


Maximum load quantity


40GP/ 40NOR




22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons
