Enameled Copper Wire

Short Description:

Enamelled copper wire is one of the main types of winding wire. It is composed of conductor and insulating layer. The bare wire is softened by annealing, painted for many times, and baked. With mechanical properties, chemical properties, electrical properties, thermal properties of four major properties.

It is used in the construction of transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding.

Product Detail

Product Tags

Product Types

● Polyester Enameled copper round wire(PEW);

● Polyurethane Enameled copper round wire(UEW);

● Polyesterimide enameled copper round wire(EIW);

● Polyesterimide over-coated with polyamide-imide enameled copper round wire(EIW/AIW);

● Polyamide-imide enameled copper round wire(AIW)


Manufacturing Scope: 0.10mm-7.50mm, AWG 1-38, SWG 6~SWG 42

Standard: IEC, NEMA, JIS

Spool Type: PT4 - PT60, DIN250

Package of Enameled Copper Wire: Pallet Packing, Wooden case Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

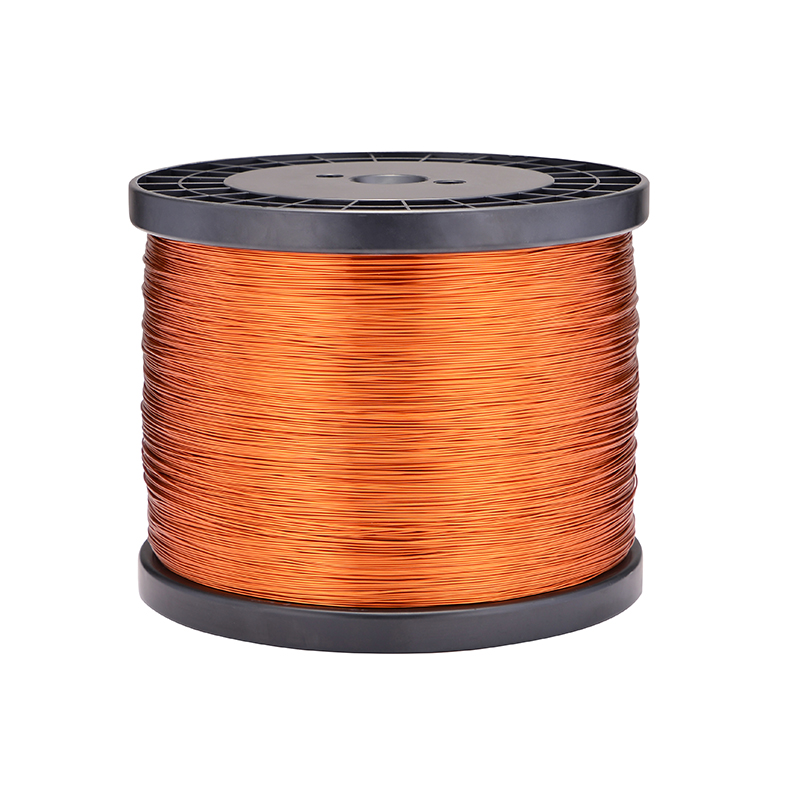

Enamelled copper wire  (1)

Advantages of Enameled Copper Wire

1) High resistance to heat shock.

2) High temperature.

3) Good performance in cut-through.

4) Suitable for high-speed automated routing.

5) Able to be direct welding.

6) Resistant to high frequency, wearing, refrigerants and electronics corona.

7) High breakdown voltage, small dielectric loss angle.h) Environment-friendly.

Product Details


Application of Enameled Copper Wire

(1) enamelled wire for motor and transformer

The motor is a large user of enamelled wire, the rise and fall of the motor industry is very important to the enamelled wire industry. Transformer industry is also a large user of enamelled wire. With the development of the national economy, the increase of electricity consumption, transformer demand also increases.

(2) enamelled wire for household appliances

Home appliances with enamelled wire is a very huge market, such as TV deflection coil, automobile, electric toys, electric tools, range hood, induction cooker, microwave oven, speaker equipment with power transformers and so on. The consumption of enamelled wire in household appliance industry has exceeded that of industrial motor and transformer enamelled wire, becoming the largest user of enamelled wire. Low friction coefficient enamelled wire, compound enamelled wire, "double zero" enamelled wire, fine enamelled wire and other types of demand will increase significantly.

(3) enamelled wire for automobiles

The rapid development of China's automotive industry and the increasing demand for enameled wire have made our products an important component of the industry's success. Our high-quality and reliable automotive enameled wires are the ideal solution for various automotive applications, and we are committed to providing customers with the best product quality and service

(4) New enamelled wire

The introduction of new enameled wires has revolutionized the electrical engineering department, creating high-performance, multifunctional, and efficient wires that meet unique industry requirements. Micro enameled wire has become a new market trend, serving various fields such as electronics, electroacoustic equipment, and laser heads. With the rapid expansion of the household appliances and electronics industry, the demand for these wires continues to grow, which will become a high demand and rapidly expanding market

Spool & Container Weight


Spool type


Maximum load quantity


40GP/ 40NOR




22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons



22.5-23 tons

22.5-23 tons
