Enameled Aluminum Wire

Short Description:

Enamelled aluminum round wire is a type of winding wire made by electric round aluminum rod which drawn by dies with special size, then over coated with enamel repetitiously.


Product Detail

Product Tags

Product Types

● Polyester Enameled aluminum round wire(PEW);

● Polyurethane Enameled aluminum round wire(UEW);

● Polyesterimide enameled aluminum round wire(EIW);

● Polyesterimide over-coated with polyamide-imide enameled aluminum round wire(EIW/AIW);

● Polyamide-imide enameled aluminum round wire(AIW)

Specification

Manufacturing Scope: 0.15mm-7.50mm, AWG 1-34, SWG 6~SWG 38

Standard: IEC, NEMA,  JIS

Spool Type: PT15 - PT270, PC500

Package of Enameled Aluminum Wire: Pallet Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

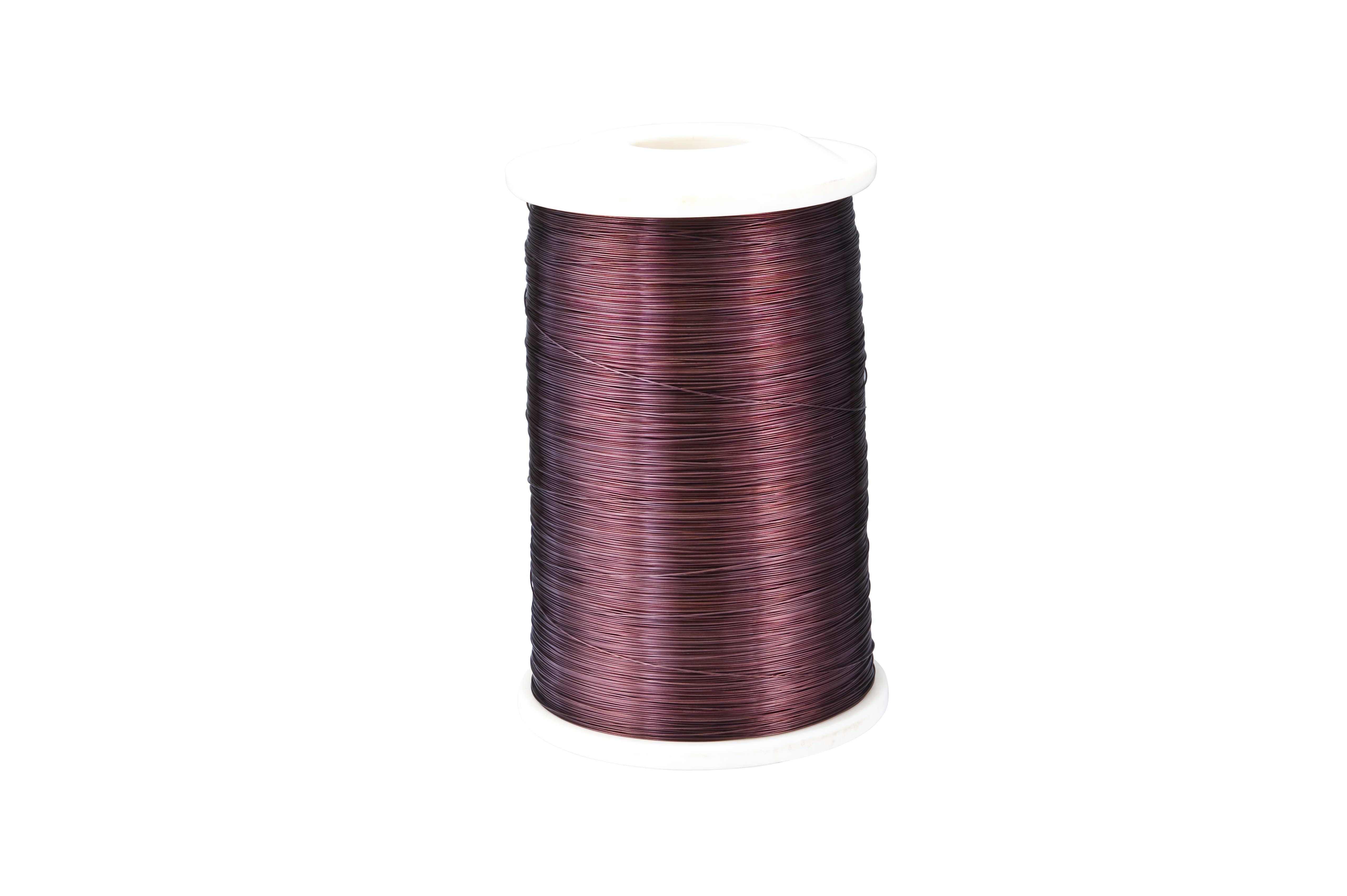

PT90

Advantages of Enameled Aluminum Wire

1) The cost of aluminum wire is 30-60% lower than copper wire, which saves the cost of production .

2) The weight of aluminum wire is only 1/3 of copper wire, which saves the transportation cost.

3) Aluminum has a faster speed of heat dissipation than copper wire in the production.

4) For the performance of Spring-back and Cut-through, aluminum wire is better than copper wire.

Product Details

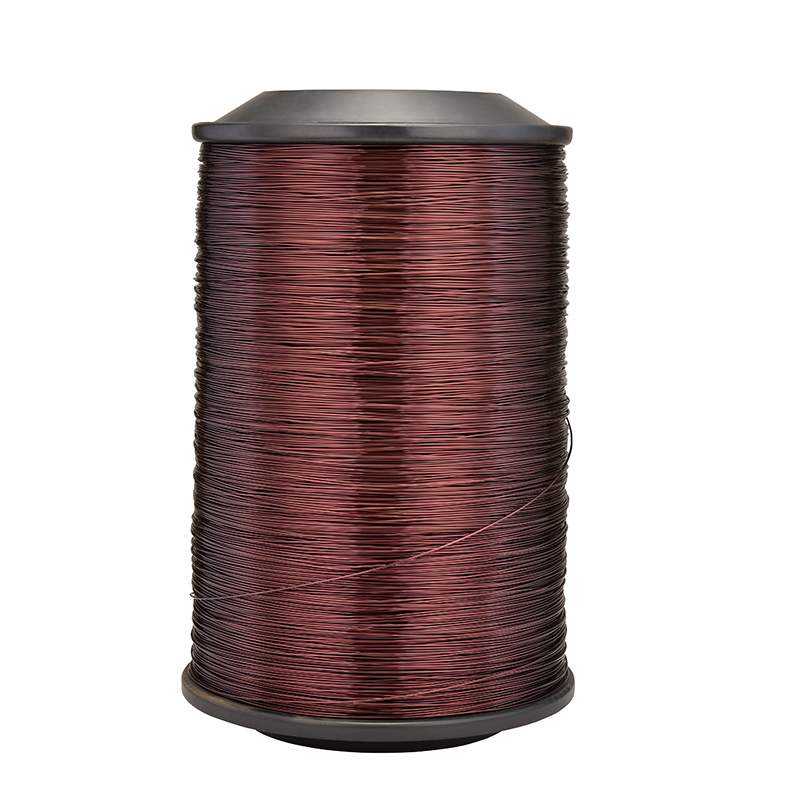

PT200

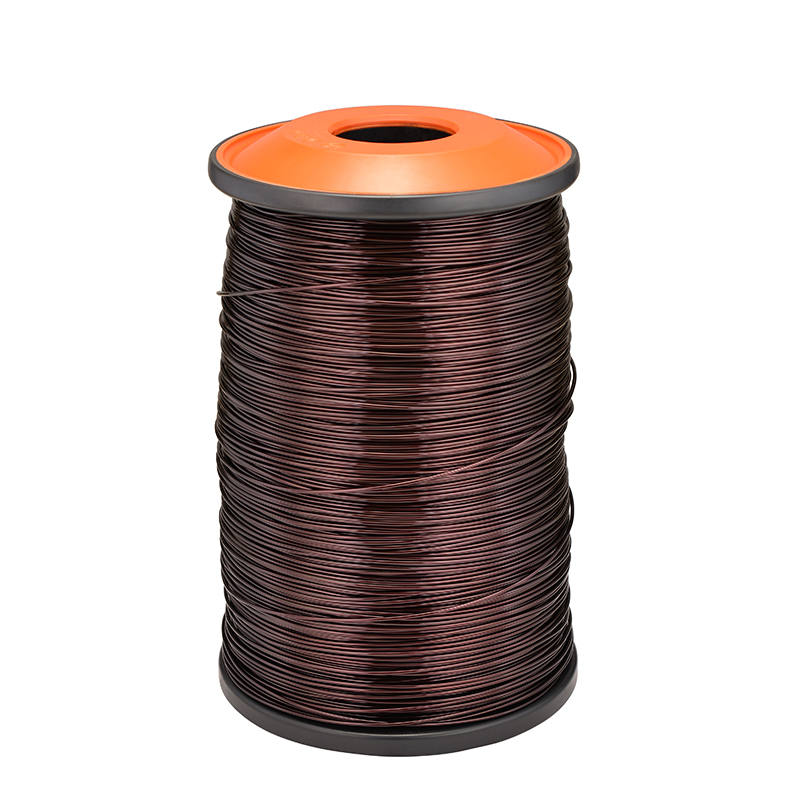

PT270

Application of Enameled Aluminum Wire

1. Microwave transformers;

2.Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission

3. Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;

4. Enamelled wire used in small-motor rotor winding .etc.

5. Magnet wires used in monitor deflection coil;

6. Magnet wires used in degaussing coil;

7. Other special magnet wire.

Spool & Container Weight

Packing

Spool type

Weight

/Spool

Maximum load quantity

20GP

40GP/ 40NOR

Pallet

PT15

6.5KG

12-13 tons

22.5-23 tons

PT25

10.8KG

14-15 tons

22.5-23 tons

PT60

23.5KG

12-13 tons

22.5-23 tons

PT90

30-35KG

12-13 tons

22.5-23 tons

PT200

60-65KG

13-14 tons

22.5-23 tons

PT270

120-130KG

13-14 tons

22.5-23 tons

PC500

60-65KG

17-18 tons

22.5-23 tons
