155 Class UEW Enameled Aluminum Wire

Short Description:

Enameled aluminum round wire is a type of winding wire made by electric round aluminum rod which was drawn by dies with special size, then over coated with enamel repetitiously. The production is affected by raw material quality, process parameters, production equipment, environment and other factors. The product has excellent properties of mechanical strength, film adhesion and solvent resistance, light weight and flexibility. 155 Class UEW Enameled Aluminum Wire has good performance of elasticity, skin adhesion, electrical properties and solvent resistance. It is widely used in small motor, high frequency transformers, inductors, ballasts, electrical appliances, deflection coils in monitor, antimagnetized coils, induction cooker, microwave oven, reactor, etc.

Product Detail

Product Tags

Product Types

QZL/155, PEWNA/155

Temperature Class(℃): F

Manufacturing Scope: Ф0.18-6.50mm, AWG 1-34, SWG 6~SWG 38

Standard: IEC, NEMA, JIS

Spool Type: PT15 - PT270, PC500

Package of Enameled Aluminum Wire: Pallet Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Advantages of Enameled Aluminum Wire

1)The cost of aluminum wire saves the cost of production, which is 30-60% lower than copper wire.

2) The weight of aluminum wire saves the transportation cost, which is only 1/3 of copper wire.

3)Aluminum is good at heat dissipation at a fast speed.

4) For the performance of Spring-back and Cut-through, aluminum wire is better than copper wire.

5) Enameled aluminum wire has good performance of skin adhesion, heat resistance and chemical resistance.

6) Enameled aluminum wire has good performance of insulation and corona resistance.

Product Details

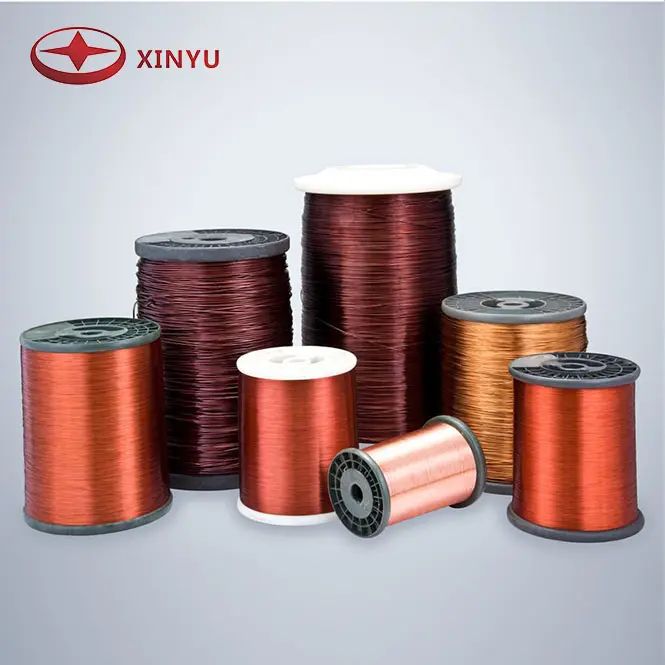

155 Class UEW Enameled Aluminu4

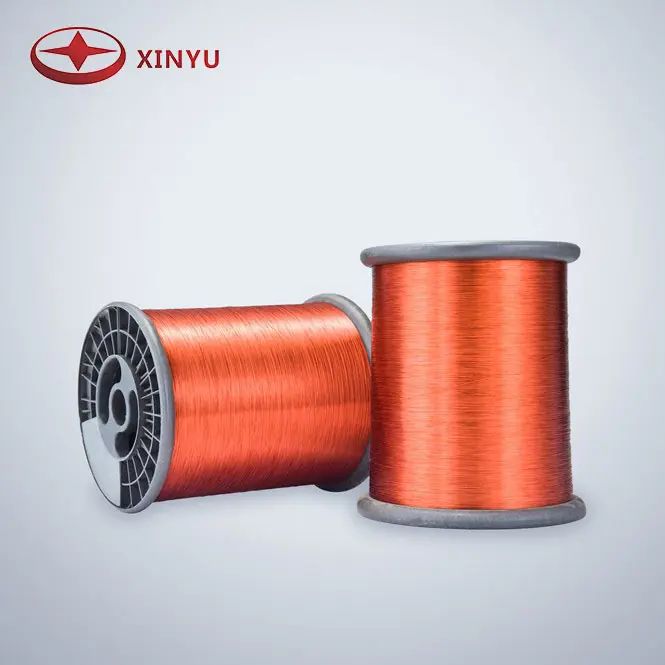

130 Class Enameled Aluminum Wi5

Application of 155 Class UEW Enameled Aluminum Wire

1.Magnetic wire used in induction cooker, microwave transformers, ballasts, electrical appliances.

2. Drives, converters, other special magnetic wires.

3. Small-motor rotor winding.

4. Monitor deflection coil.

5. Magnetic wire used in reactors.

6. Telecommunication equipment.

Spool & Container Weight

Packing Spool type Weight/Spool Maximum load quantity
 20GP 40GP/ 40NOR
Pallet PT15 6.5KG 12-13 tons 22.5-23 tons
PT25 10.8KG 14-15 tons 22.5-23 tons
PT60 23.5KG 12-13 tons 22.5-23 tons
PT90 30-35KG 12-13 tons 22.5-23 tons
PT200 60-65KG 13-14 tons 22.5-23 tons
PT270 120-130KG 13-14 tons 22.5-23 tons
PC500 60-65KG 17-18 tons 22.5-23 tons
