220 Class Enameled Aluminum Wire

Short Description:

Enameled aluminum round wire is a type of winding wire made by electric round aluminum rod which drawn by dies with special size, then over coated with enamel repetitiously. Enameled wire is the main raw material for motors, electrical appliances and household appliances and other products, especially in recent years the power industry has achieved sustained rapid growth, the rapid development of household appliances, to the application of enameled wire to bring a broader field. 220 Class Enameled Aluminum Wire has excellent properties of solvent resistance, thermal stability, high heat shock, high cut-through, resistance to radiation, high temperature resistance, and resistance to refrigerant. It is widely used in explosion-proof motors, refrigerator compressors, electromagnetic coils, refractory transformers, electric tools, special motors compressors and air conditioning compressors, etc.

Product Detail

Product Tags

Product Types

Q(ZY/XY)L/220, El/AIWA/220

Temperature Class(℃): C

Manufacturing Scope: Ф0.18-6.00mm, AWG 1-34, SWG 6~SWG 38

Standard: NEMA, JIS, GB, IEC

Spool Type: PT15 - PT270, PC500

Package of Enameled Aluminum Wire: Pallet Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Advantages of Enameled Aluminum Wire

1) The cost of aluminum wire is lower than copper wire, so it can save the transportation cost.

2) The weight of aluminum wire is 2/3 lighter than that of copper wire.

3) Aluminum wire has a faster speed of heat dissipation than that of copper wire.

4) Aluminum wire does well in the performance of Spring-back and Cut-through.

Product Details

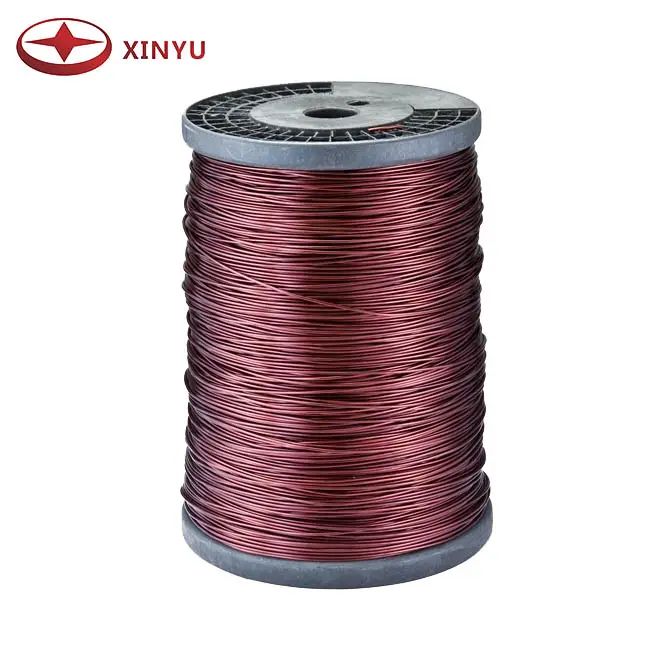

180 Class Enameled Aluminum Wi5

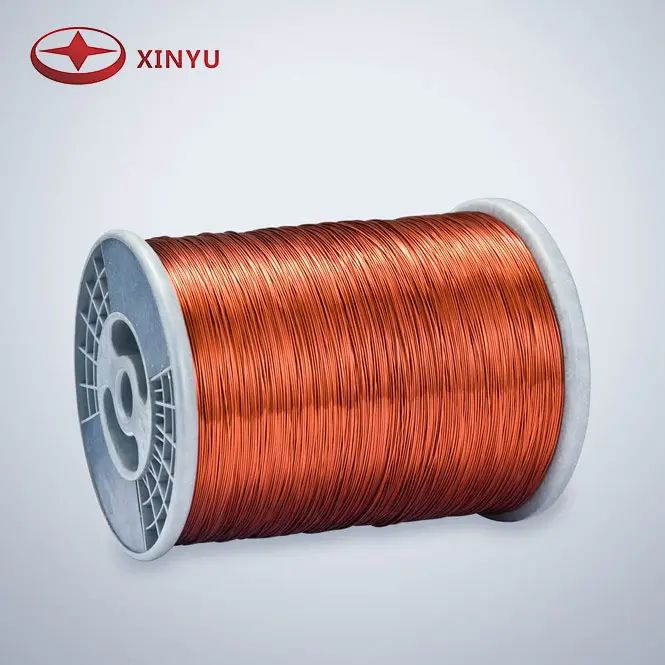

180 Class Enameled Aluminum Wi4

Application of 220 Class Enameled Aluminum Wire

1. Magnetic wires used in refrigerator compressors, air conditioning compressors and other special motors compressors.

2. Magnetic wire used in power transformers, high frequency transformers and common transformers.

3. Magnetic wires used in industrial motors and accessory motors.

4.Electromagnetic coils.

5. Other magnetic wires.

Spool & Container Weight

Packing Spool type Weight/Spool Maximum load quantity
 20GP 40GP/ 40NOR
Pallet PT15 6.5KG 12-13 tons 22.5-23 tons
PT25 10.8KG 14-15 tons 22.5-23 tons
PT60 23.5KG 12-13 tons 22.5-23 tons
PT90 30-35KG 12-13 tons 22.5-23 tons
PT200 60-65KG 13-14 tons 22.5-23 tons
PT270 120-130KG 13-14 tons 22.5-23 tons
PC500 60-65KG 17-18 tons 22.5-23 tons
